¶ Tools and Materials
-
1.5 mm Allen key x 1
-
2.0 mm Allen key x 1
-
2.5 mm Allen key x 1
-
A new nozzle assembly
¶ Instruction
¶ Preparation
Power off the printer and unplug the power cord.
¶ Remove the rear cooling fan assembly
-

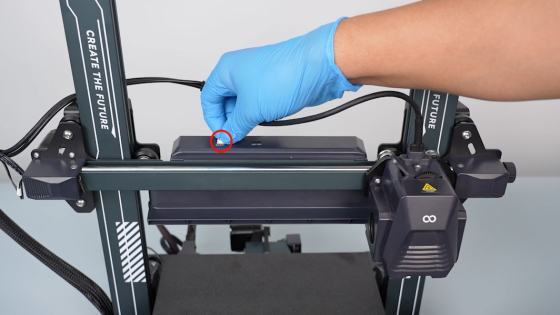

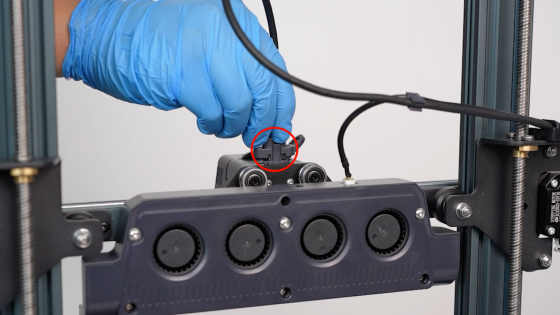

Unplug the cables of the rear cooling fan assembly.
-

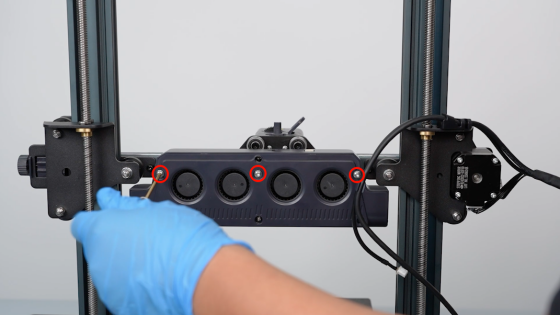

Using a 2.5 mm Allen key, loosen the three screws securing the rear cooling fan assembly.
-

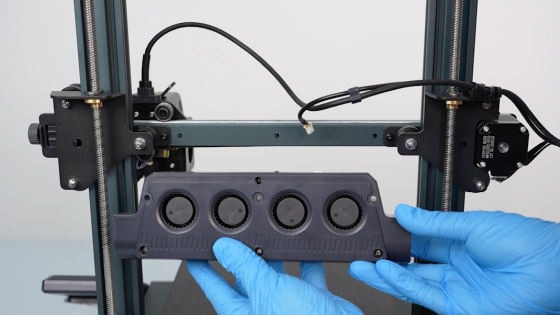

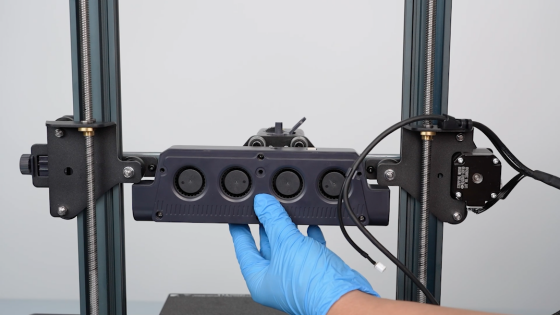

Remove the rear cooling fan assembly.
¶ Remove the print head assembly
-

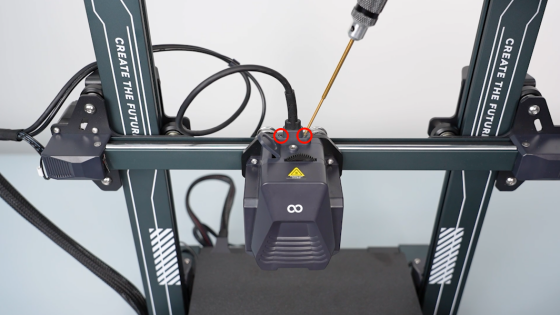

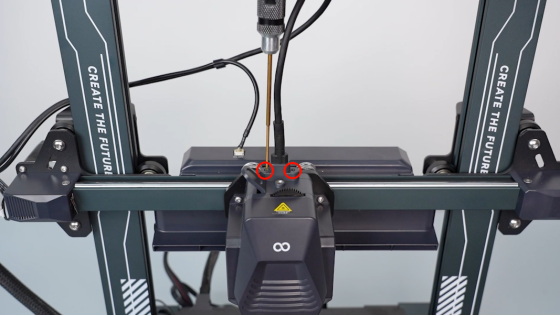

Using a 1.5 mm Allen key, loosen the two screws securing the connection cable of the print head.
-

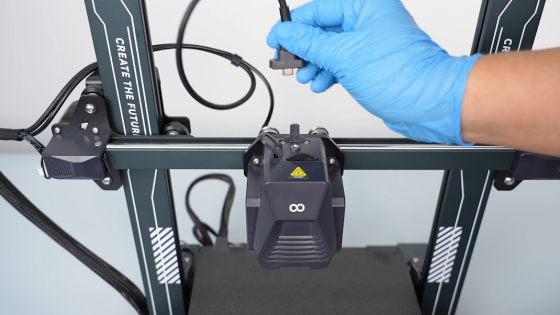

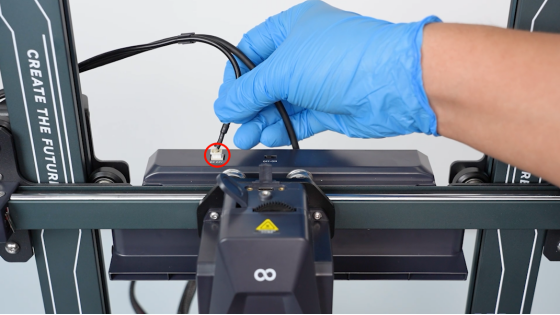

Disconnect the connection cable of the print head.
-

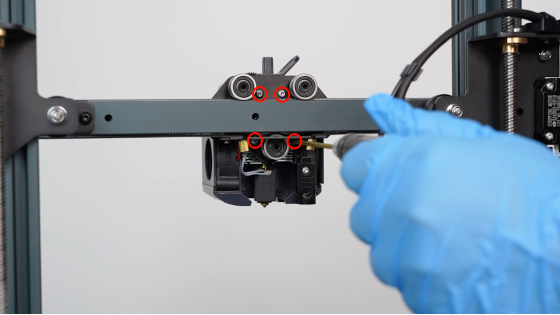

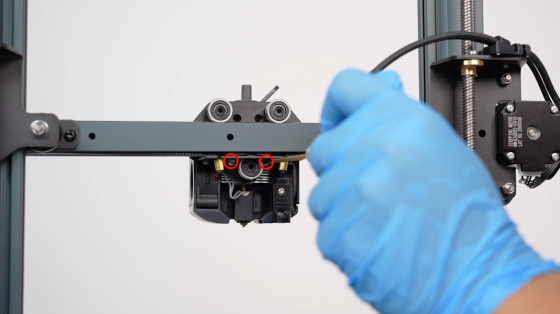

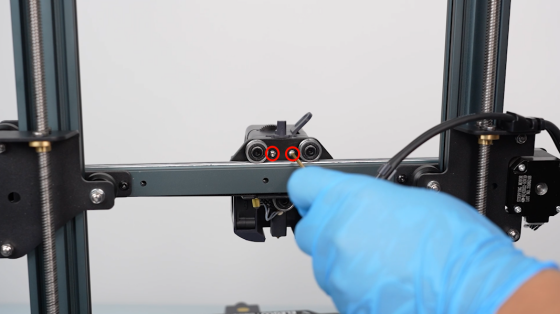

Using a 2.0 mm Allen key, loosen the four screws securing the back of the print head assembly.
-
Using a 2.0 mm Allen key, loosen the two screws securing the front cover of the print head.
-

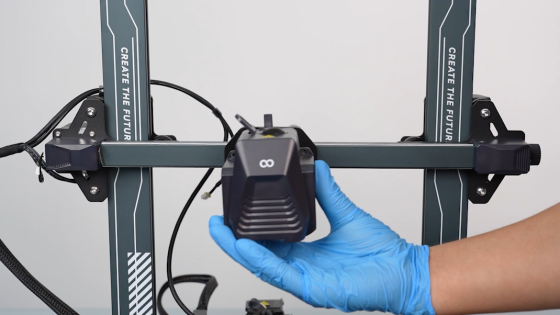

Remove the print head assembly.
¶ Remove the old nozzle assembly
-
Remove the front cover of the print head.
-

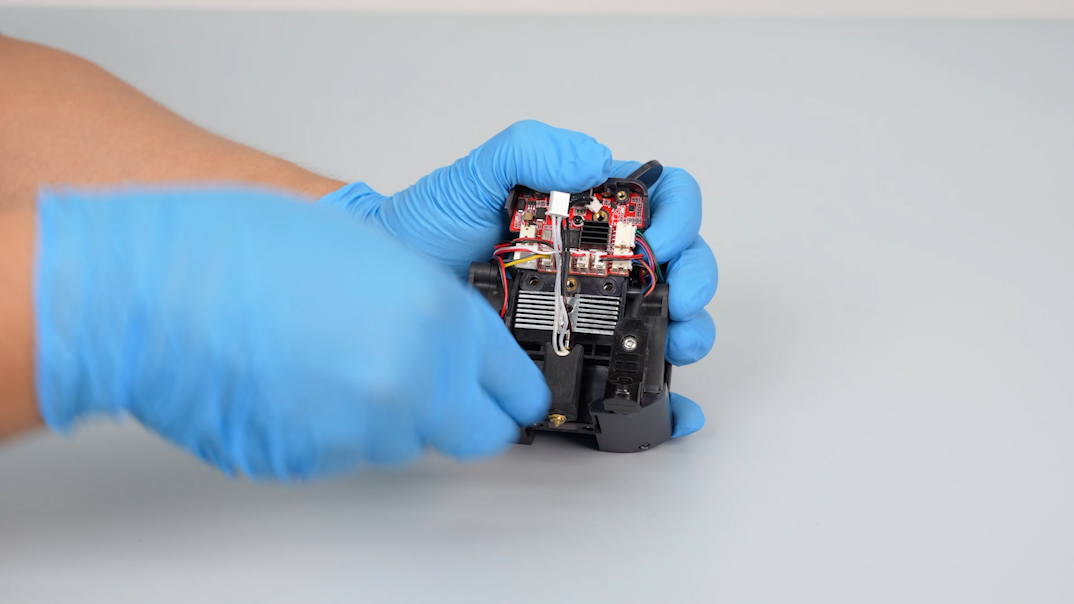

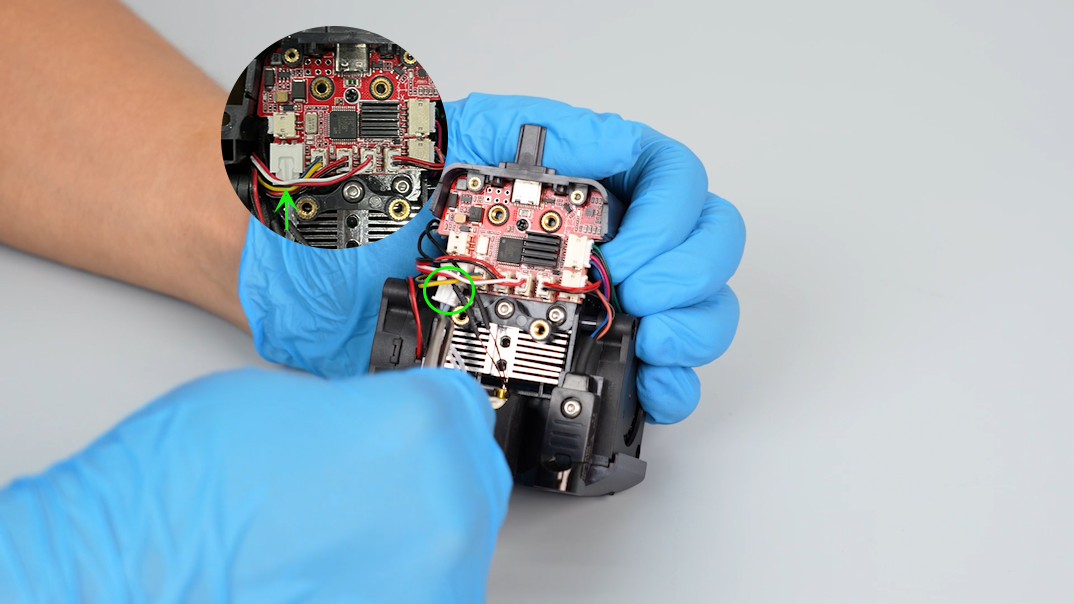

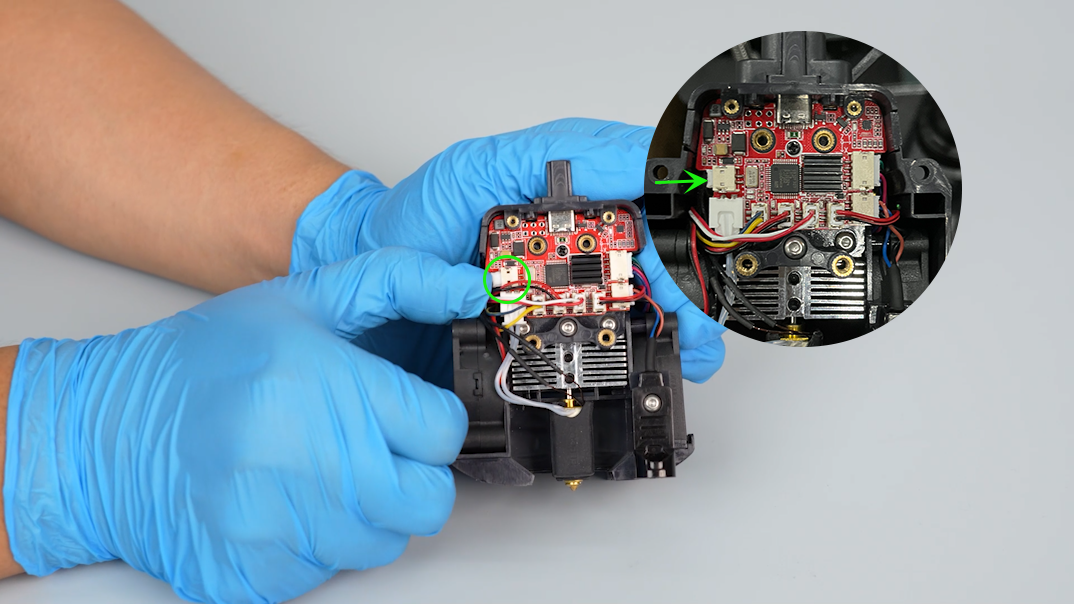

Unplug the cables of the ceramic heating sheet and the thermistor from the adapter board of the print head.
-

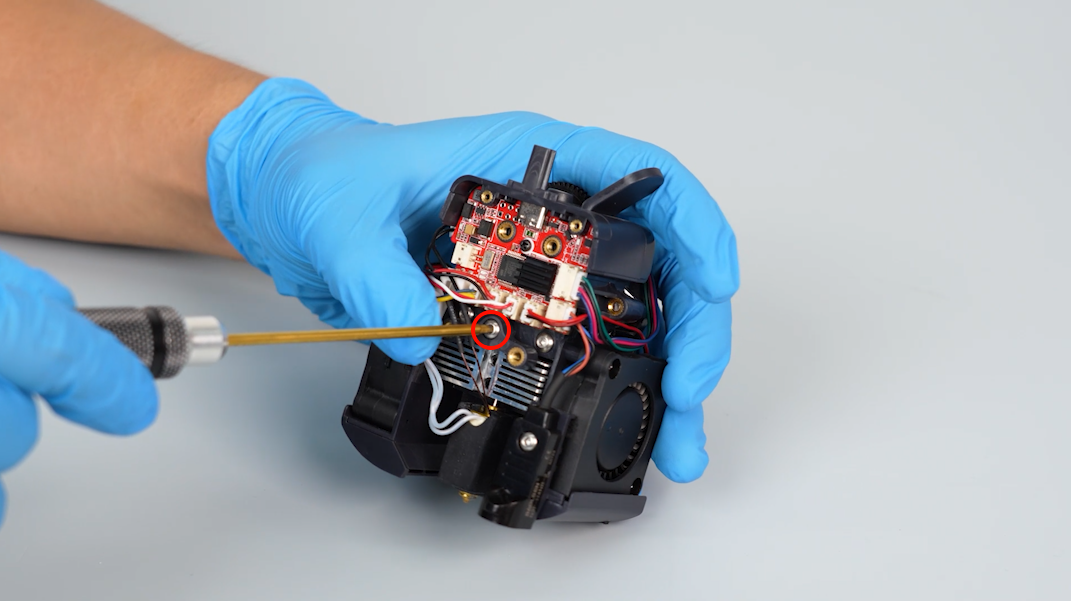

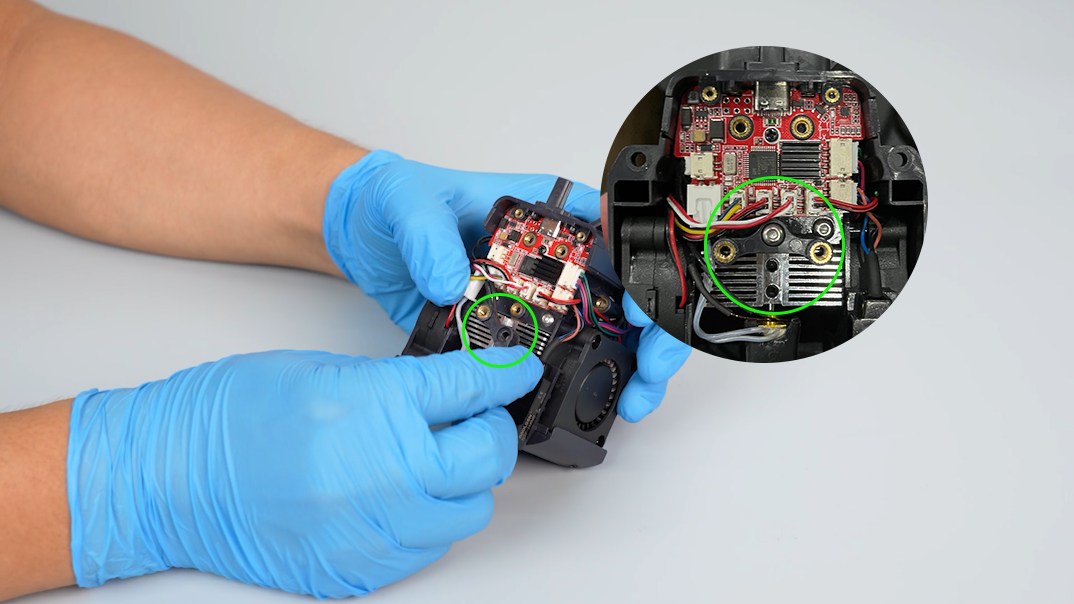

Using a 2.0 mm Allen key, loosen the screw securing the connection unit.
-
Remove the connection unit.
-

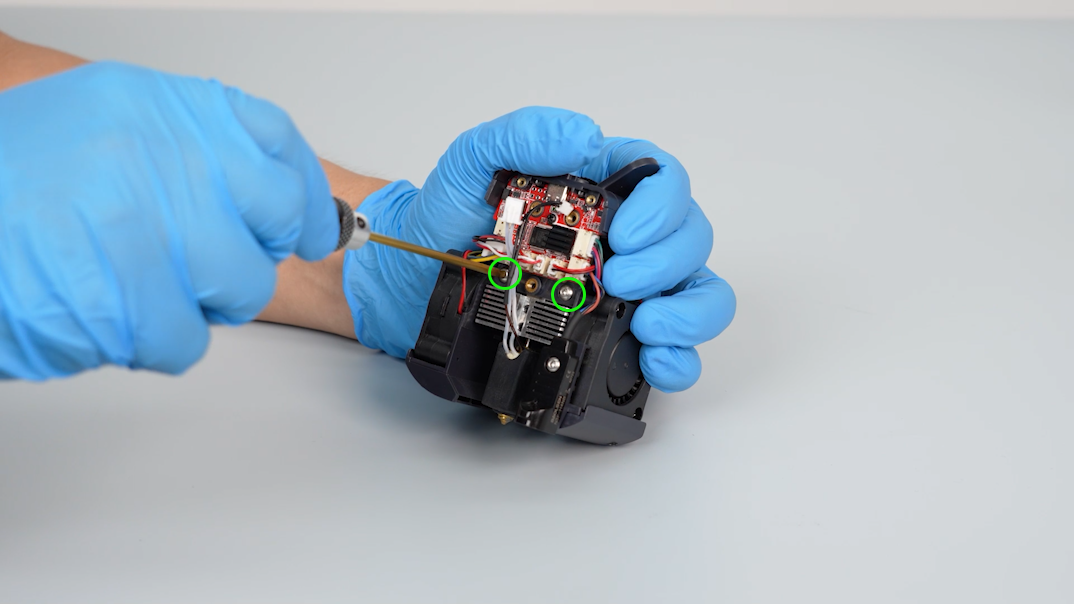

Using a 2.0 mm Allen key, loosen the two screws securing the nozzle assembly.
-
Remove the old nozzle assembly.
¶ Install the new nozzle assembly
-
Prepare a new nozzle assembly. Align the nozzle assembly with the screw holes and put it in the installation position.
-
Using a 2.0 mm Allen key, tighten the two screws securing the nozzle assembly.
-
Align the connection unit with the screw holes and put it in the installation position. Using a 2.0 mm Allen key, tighten the screw securing the connection unit.
-

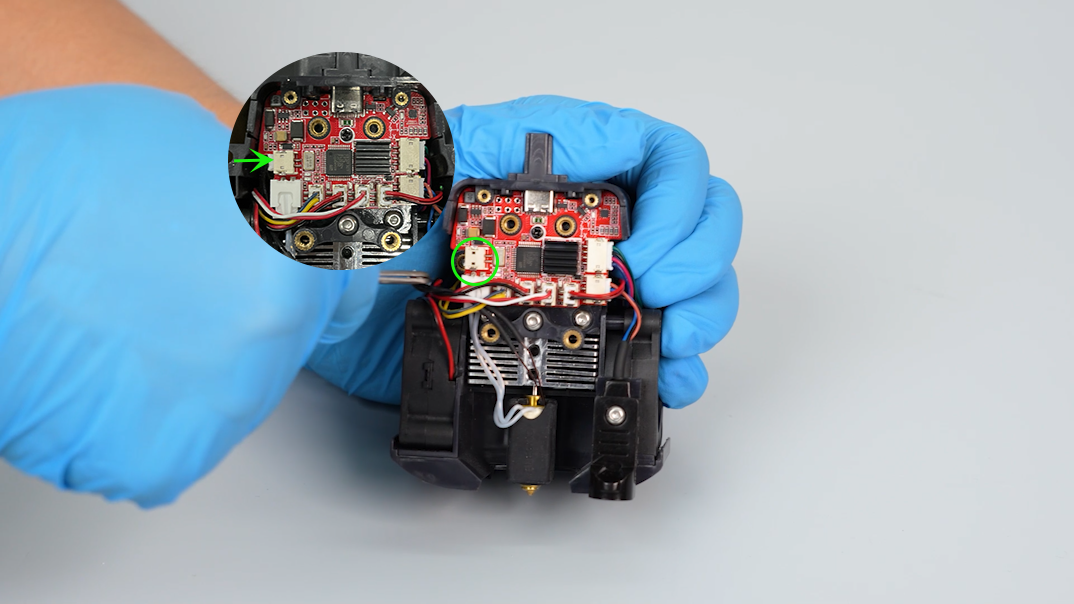

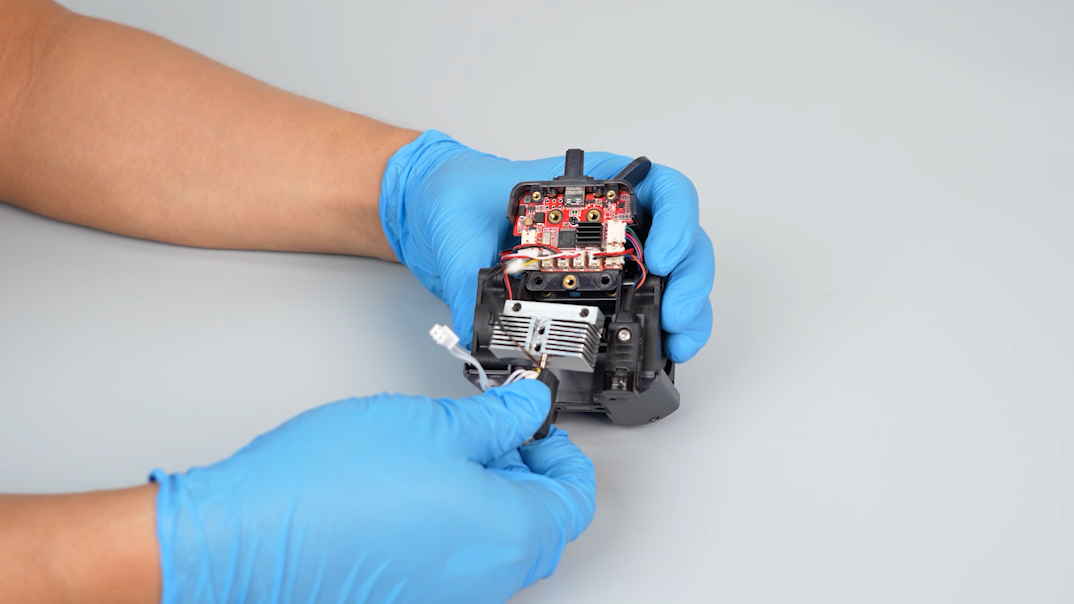

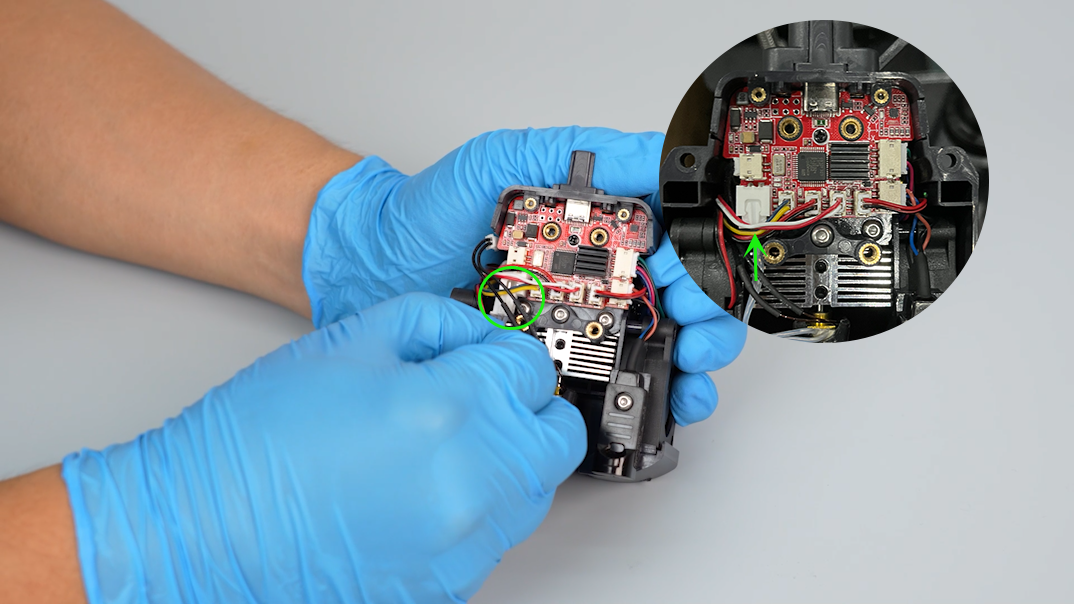

Insert the cables of the ceramic heating sheet and the thermistor into the port on the adapter board.
-

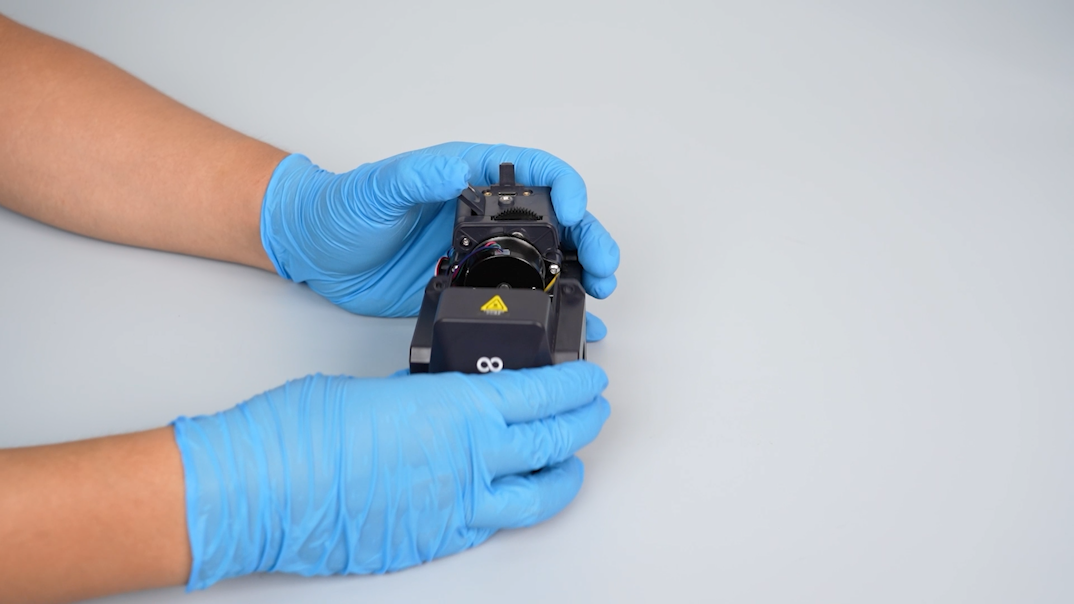

Install the front cover of the print head.
¶ Install the print head assembly
-

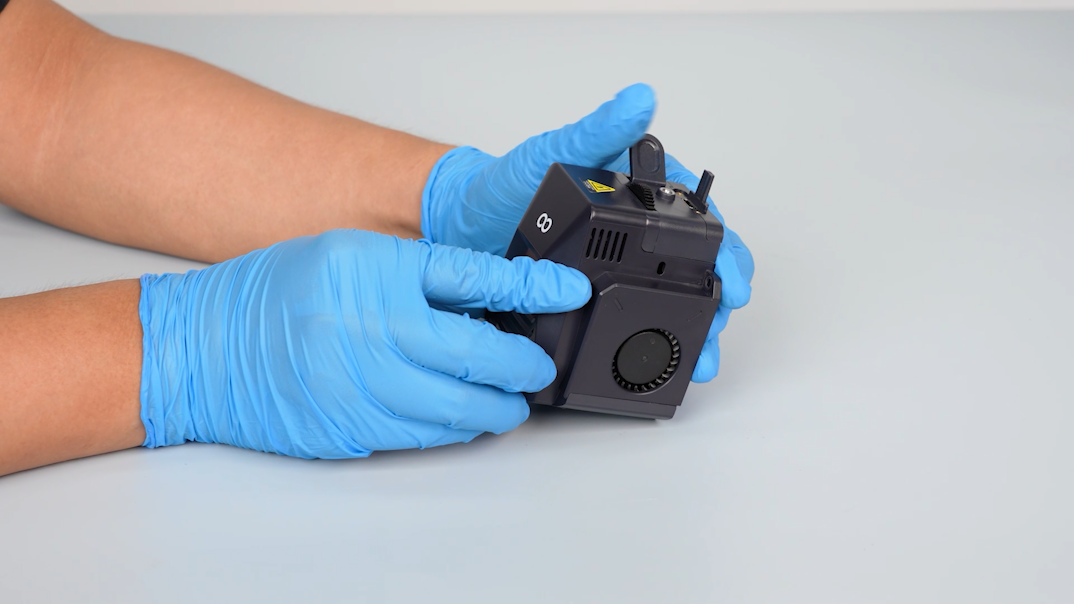

Prepare the print head assembly. Align the print head assembly with the screw holes and put it in the installation position.
-

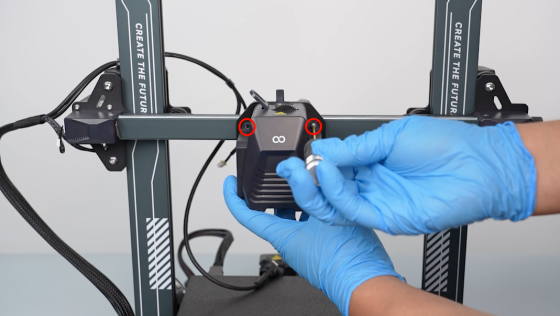

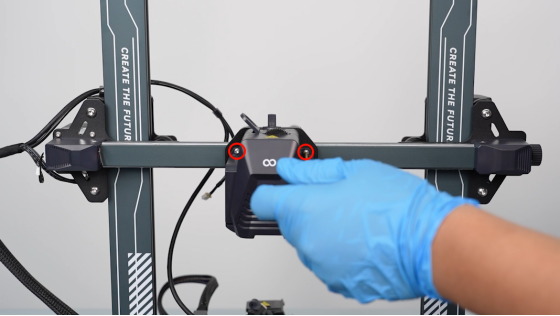

Using a 2.0 mm Allen key, tighten the two screws securing the front cover of the print head.
-
Using a 2.0 mm Allen key, tighten the four screws securing the back of the print head assembly.
¶ Install the rear cooling fan assembly
-
Prepare the rear cooling fan assembly. Align it with the screw holes and put it in the installation position.
-

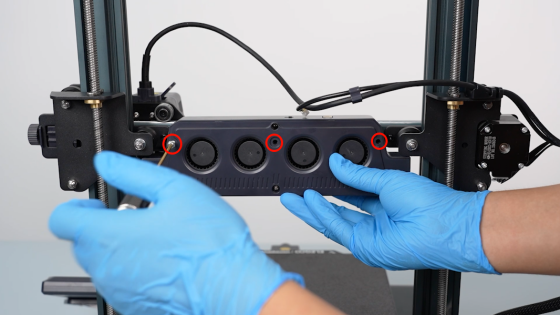

Using a 2.5mm Allen key, tighten the three screws securing the rear cooling fan assembly.
-
Plug the cables of the rear cooling fan assembly.
-
Insert the connection cable of the print head into the port.
-
Using a 1.5 mm Allen key, tighten the two screws securing the connection cable port of the print head.
¶ Restart the printer
-
Plug in the power cord and power on the printer.
-
Feed the filament into the extruder.
-

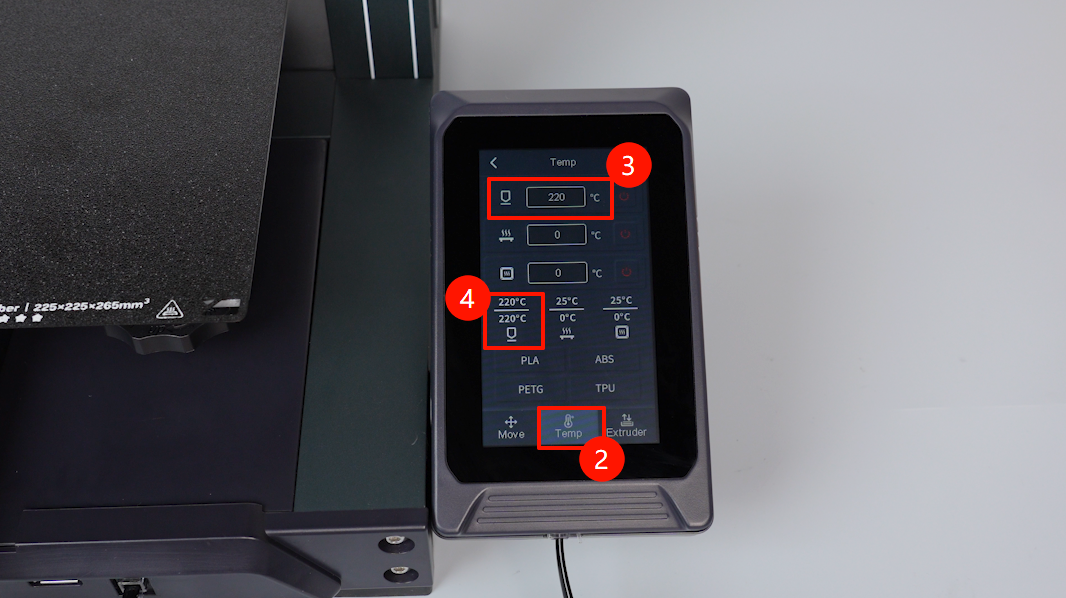

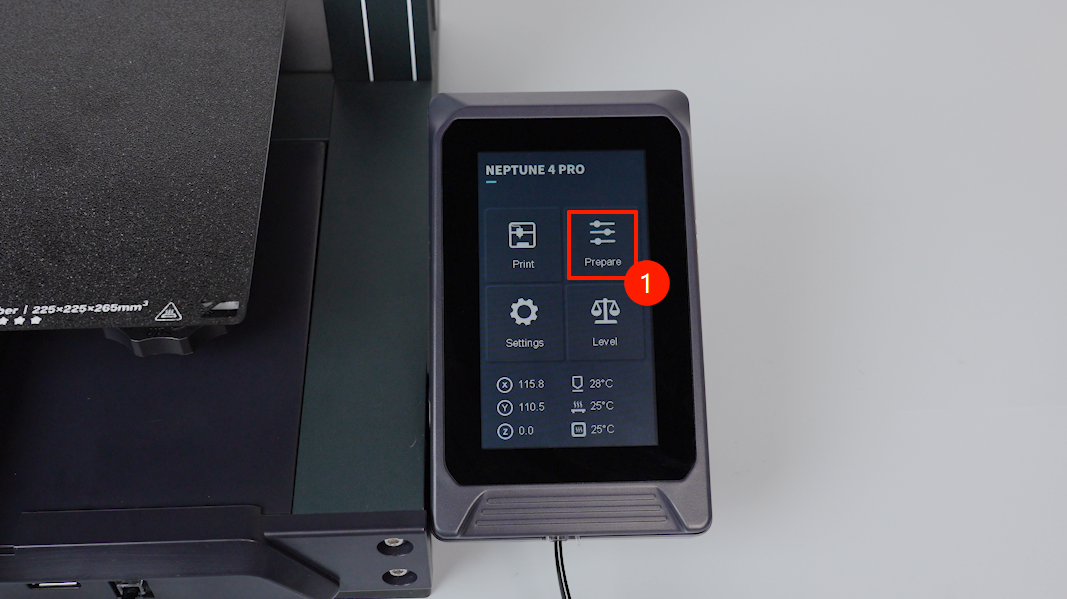

Heat up the nozzle and load the filament. On the touchscreen, select Prepare - Temperature - 220℃.
-

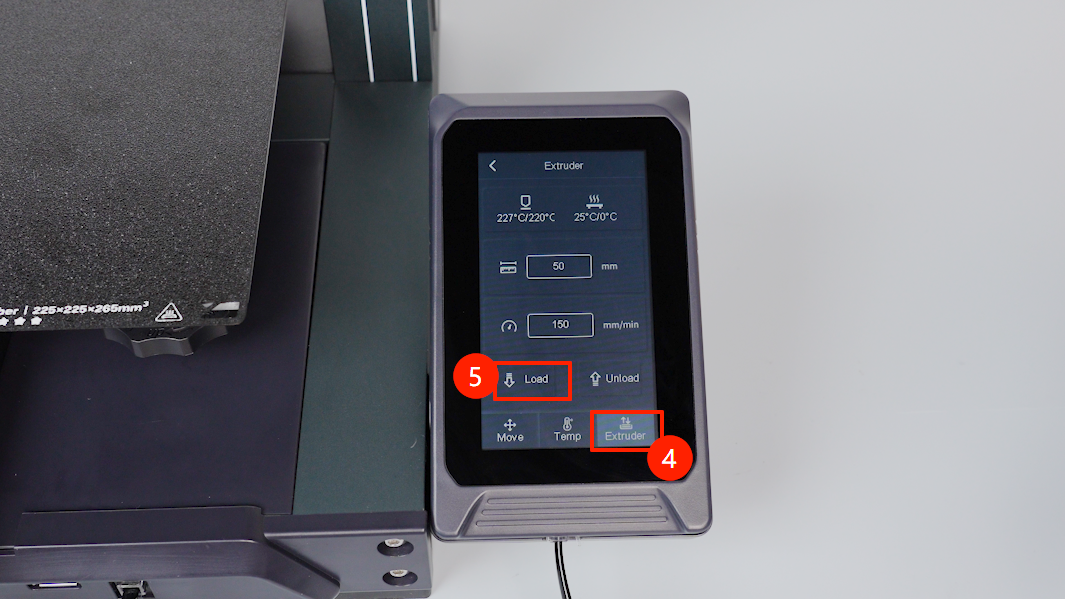

After the nozzle heating to the set temperature, click Extruder - Load. Observe that the nozzle can extrude the filament successfully.
-
The printer is ready for use after it is re-leveled.
