¶ Tools and Materials
-
A 2.5 mm Allen key
-
A 1.5 mm Allen key
-
A Phillips screwdriver
-
A new extruder communication cable
¶ Instruction
¶ Preparation

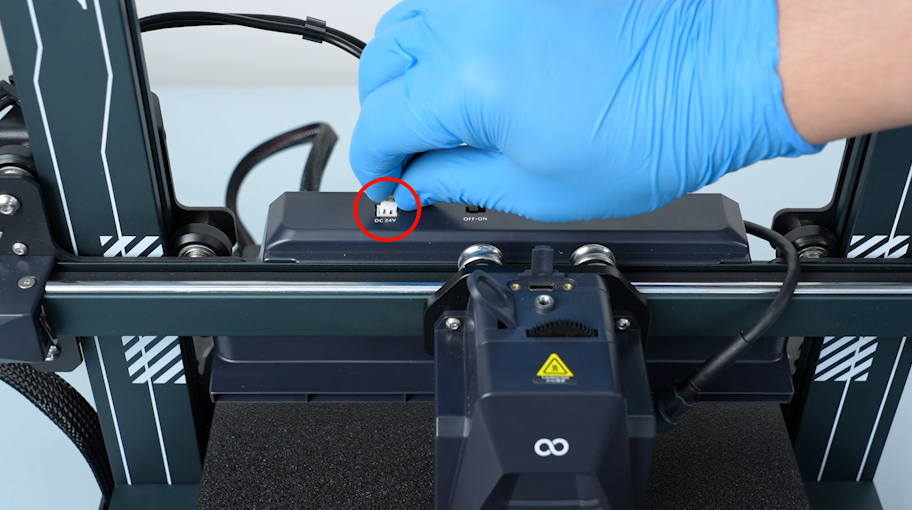

Turn the power switch OFF (symbol "〇") and unplug the power supply cable.
¶ Remove the old extruder communication cable
-

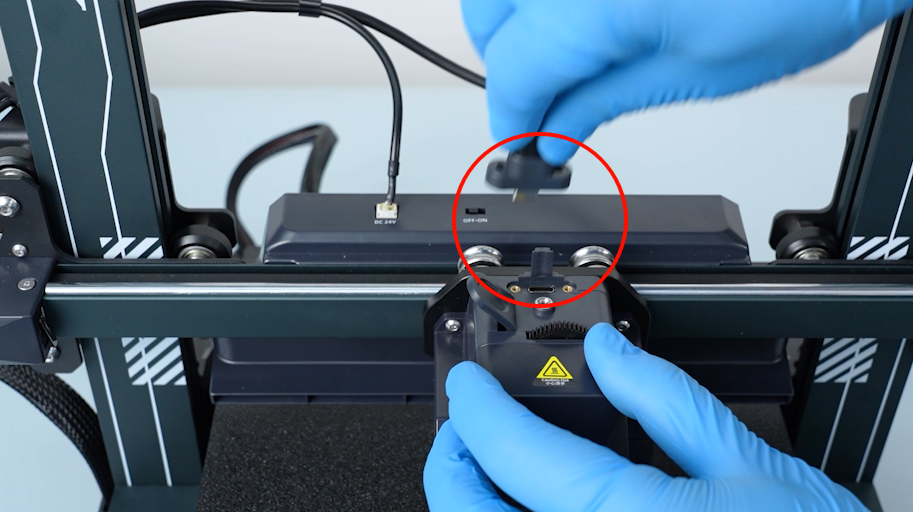

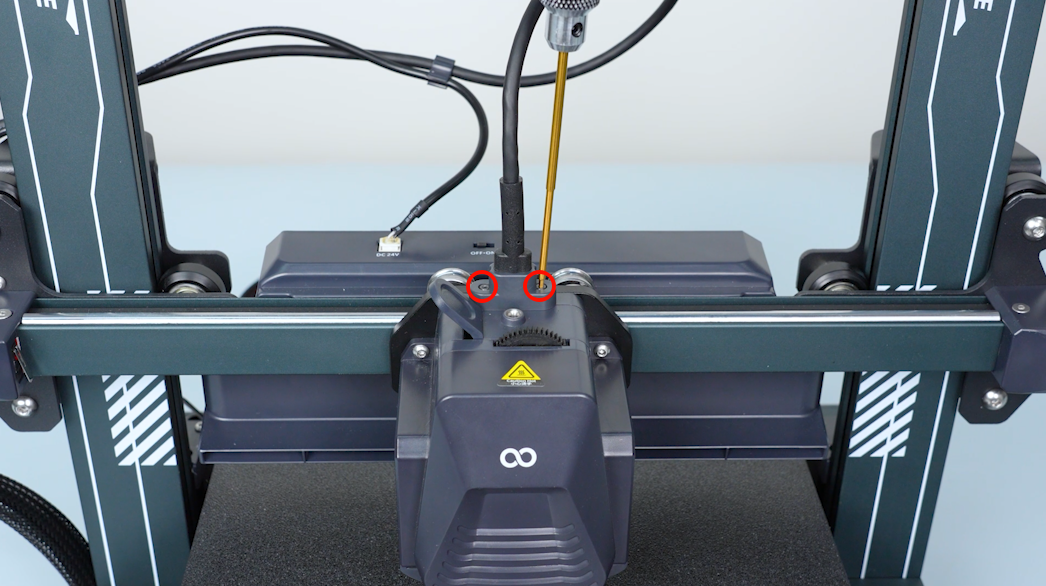

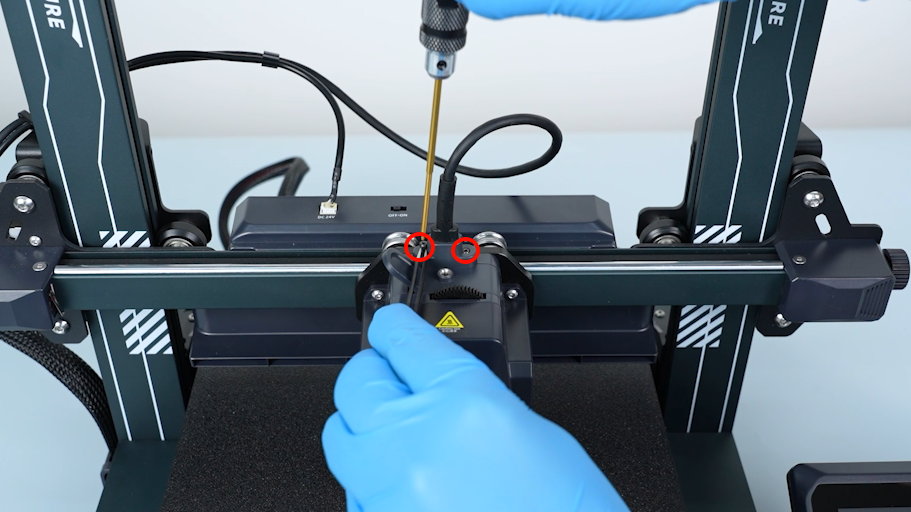

Loosen the screws securing the extruder communication cable with a 1.5 mm Allen key. Remove the screws with a pair of tweezers.
-

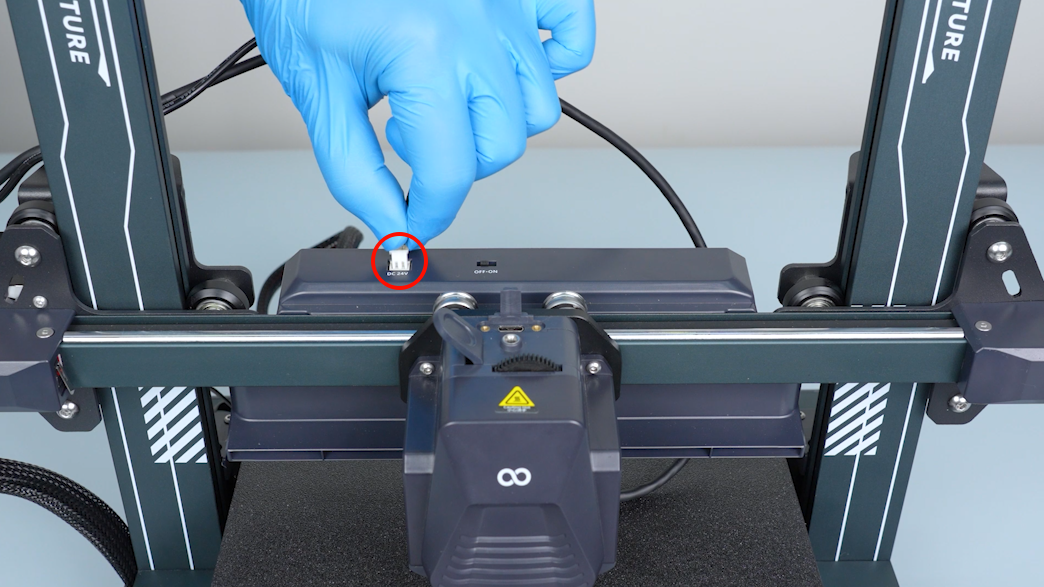

Unplug the extruder communication cable and the auxiliary cooling fan cable.
-

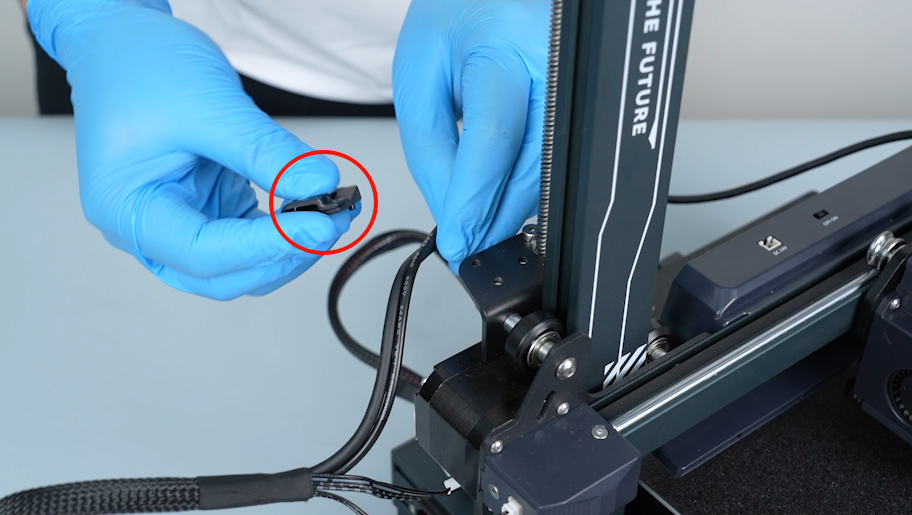

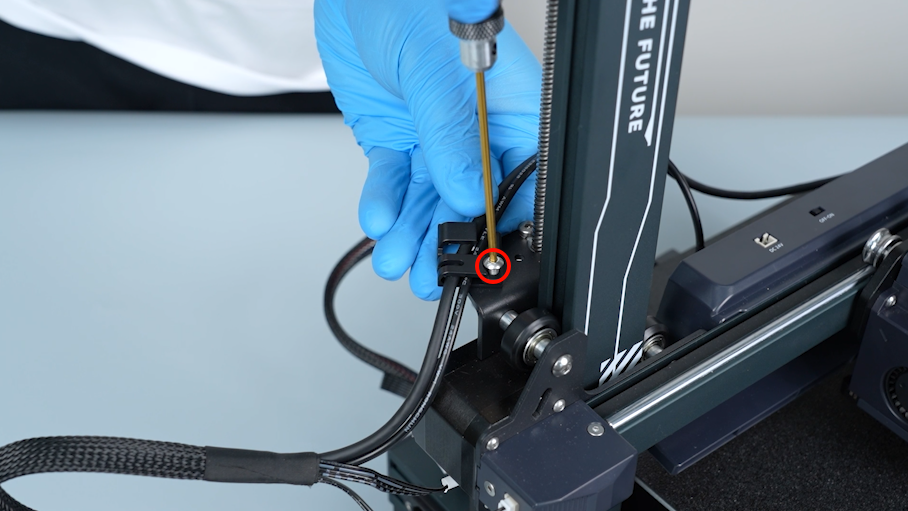

Release and remove the screw securing the clip with a 2.5 mm Allen key. Remove the clip from extruder communication cable.
-

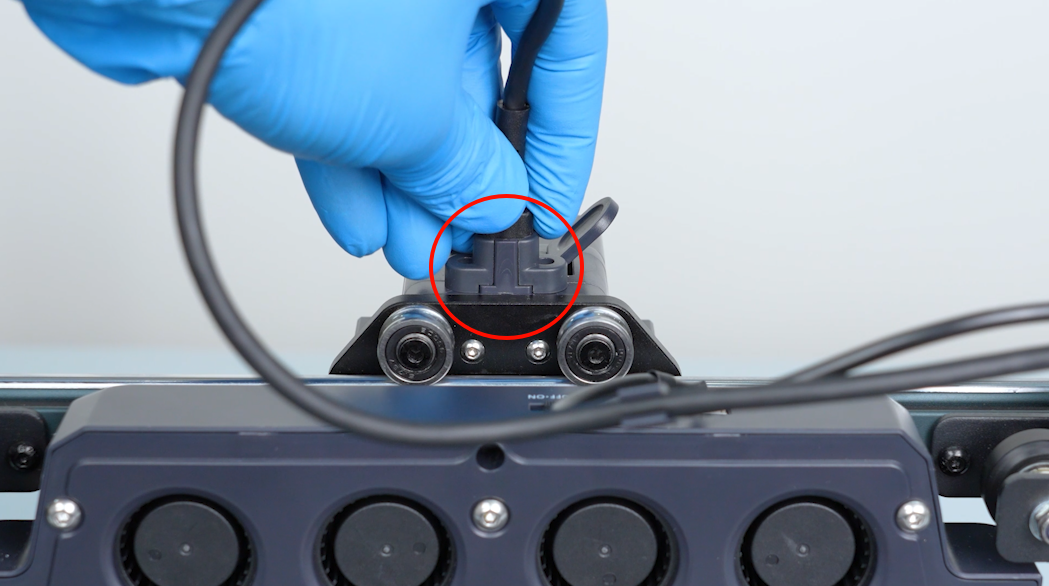

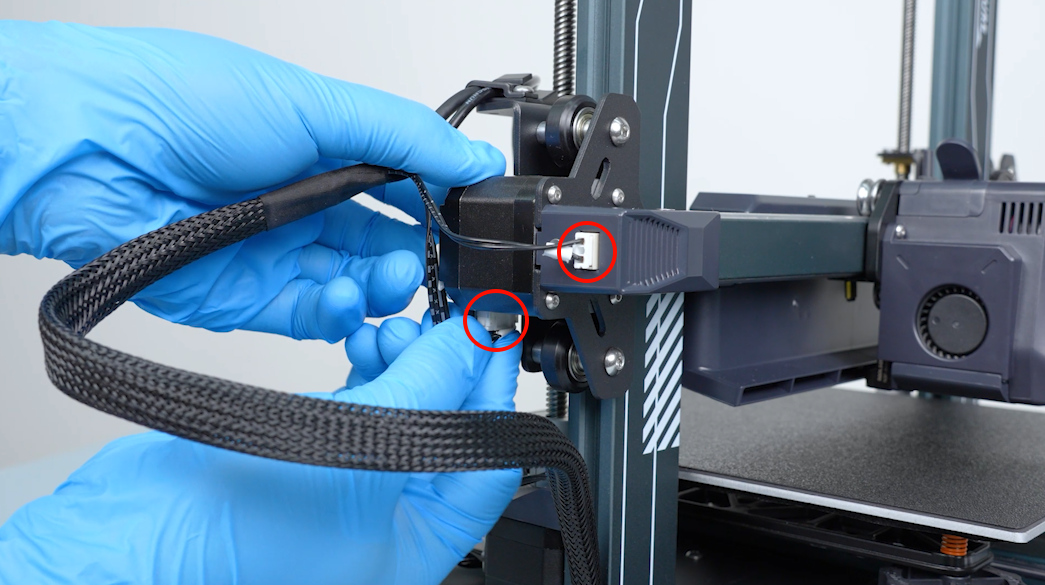

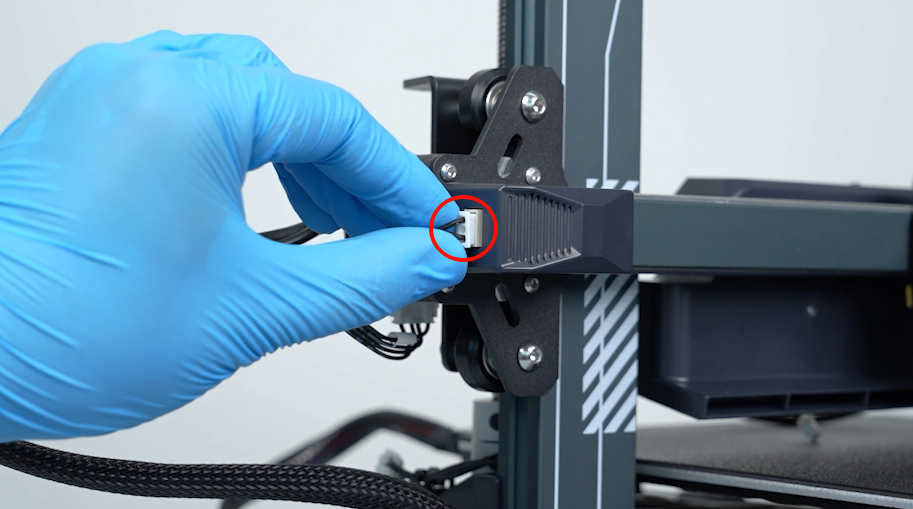

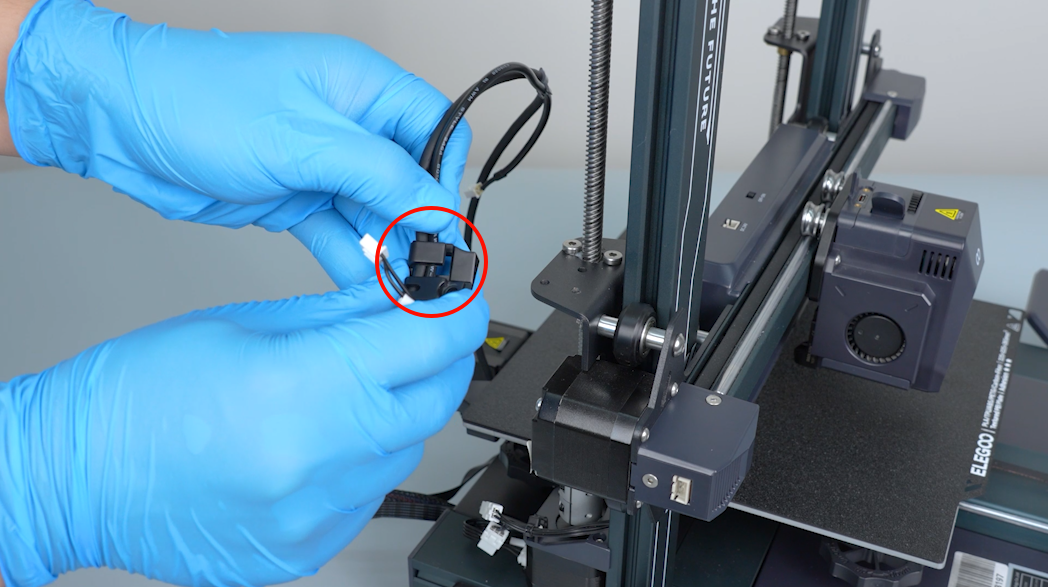

Remove the plugs from the X-axis limit switch and the X-axis motor.
-

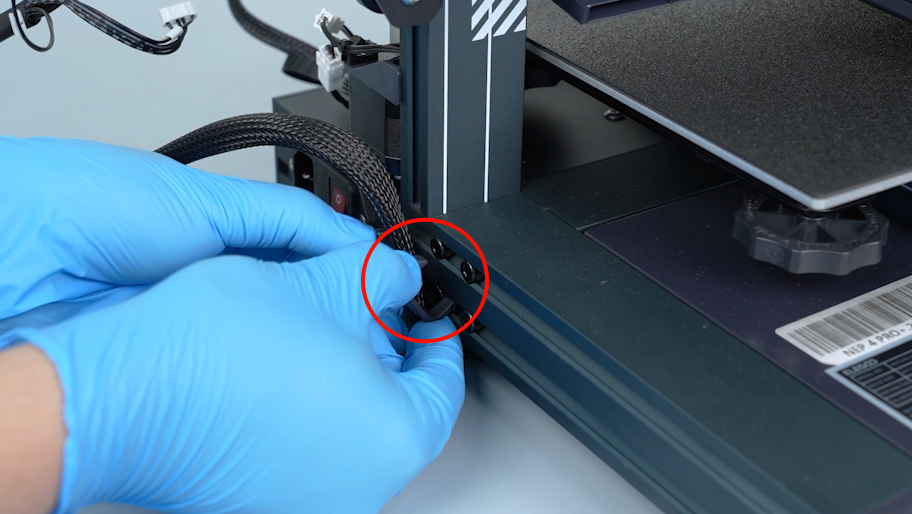

Remove the snap.
-

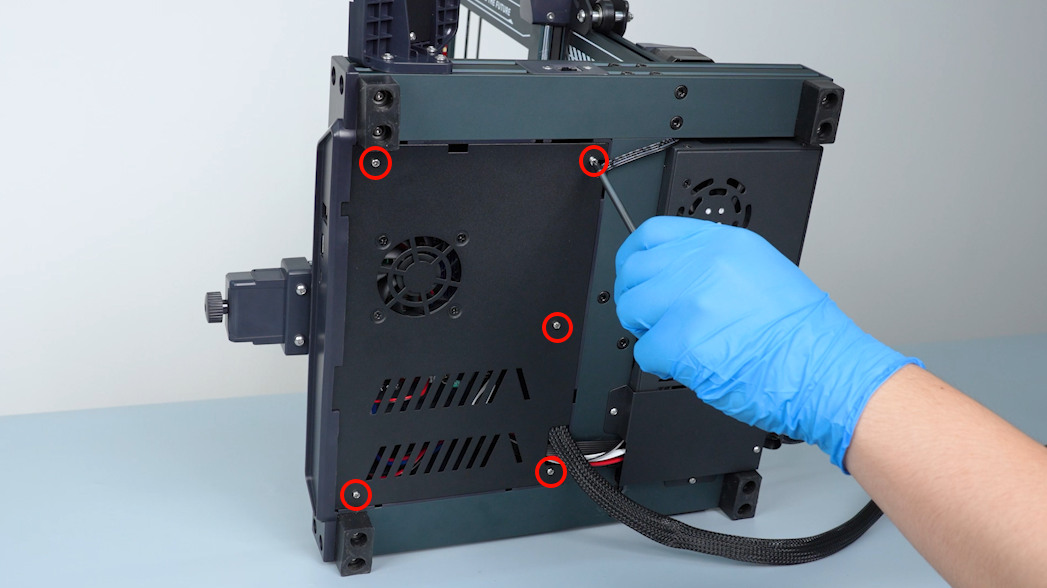

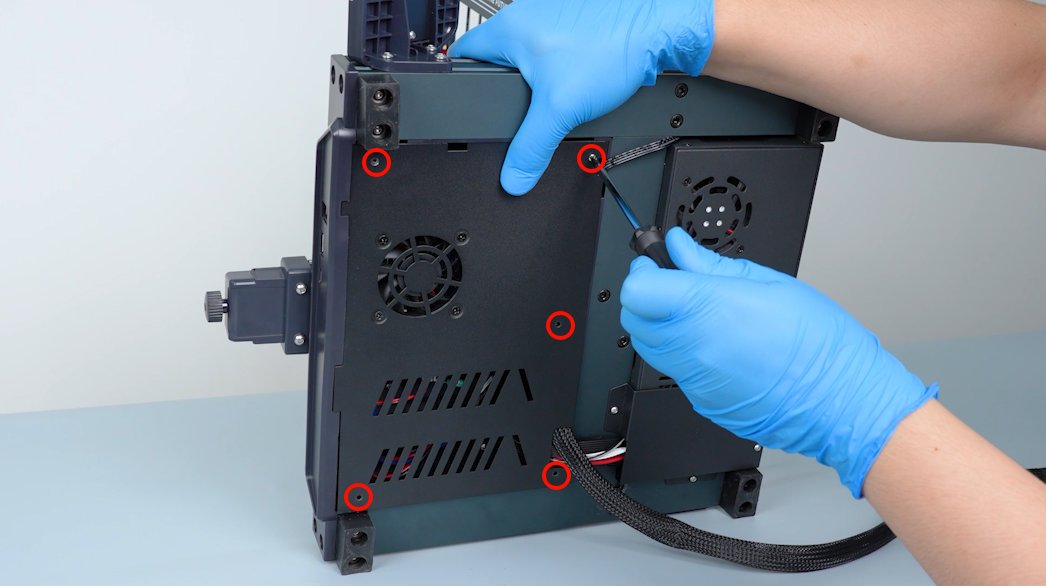

Loosen the five screws securing the bottom cover with a Phillips screwdriver. Open the bottom cover carefully.
-

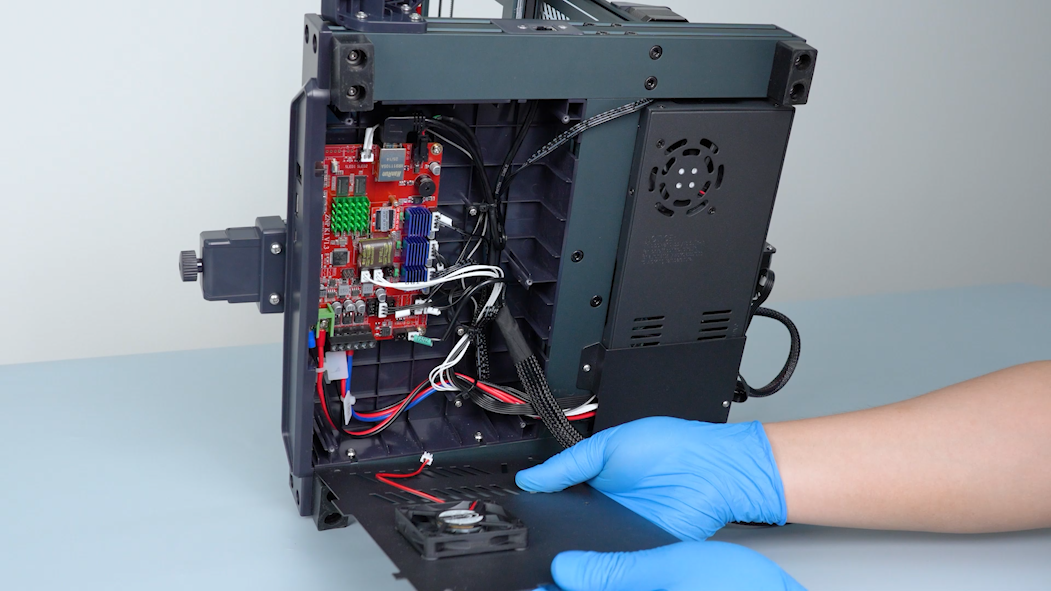

Disconnect the cable of the motherboard cooling fan and remove the bottom cover.
-

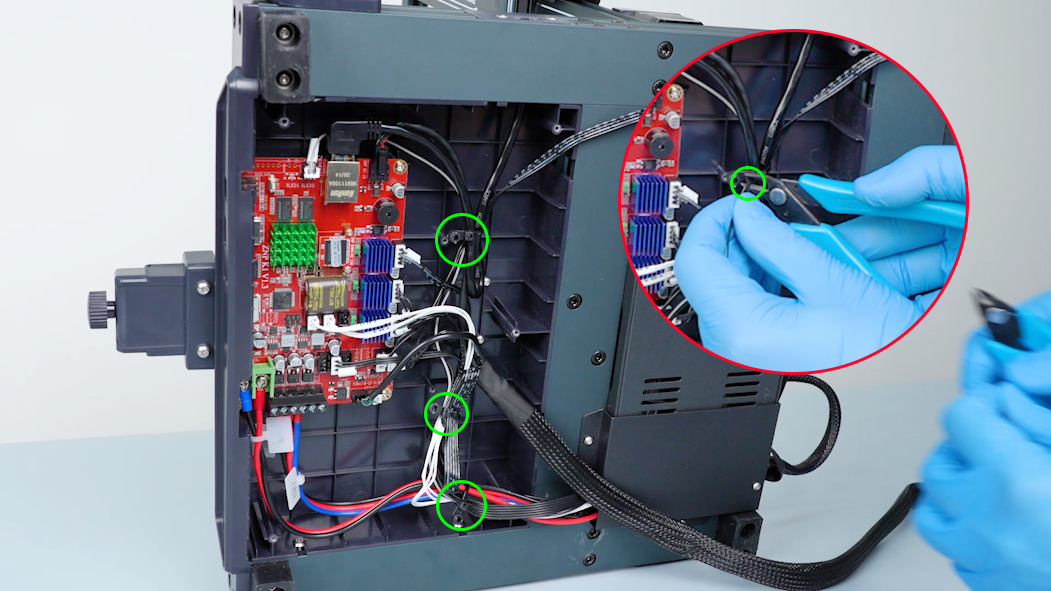

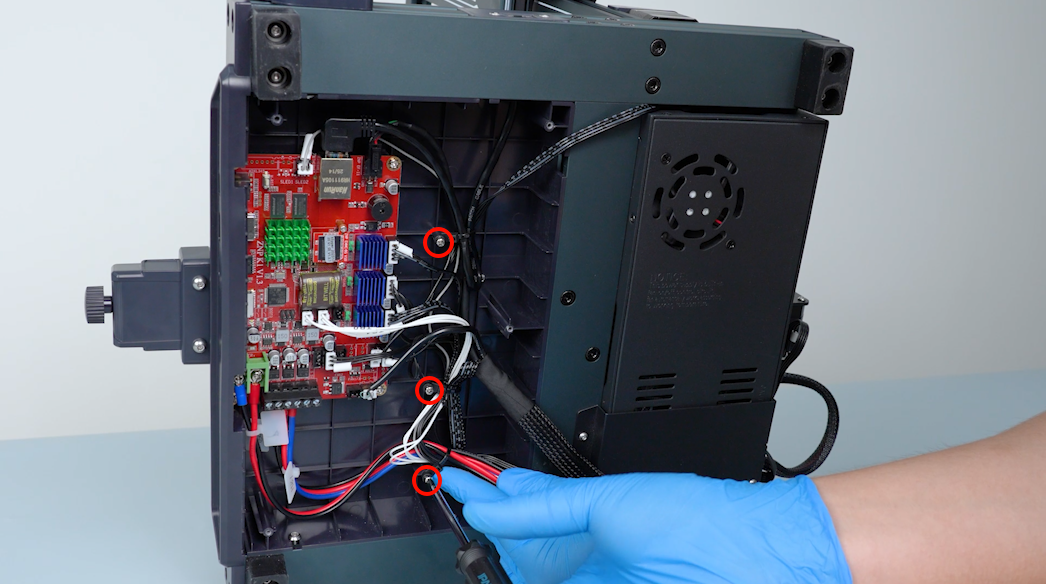

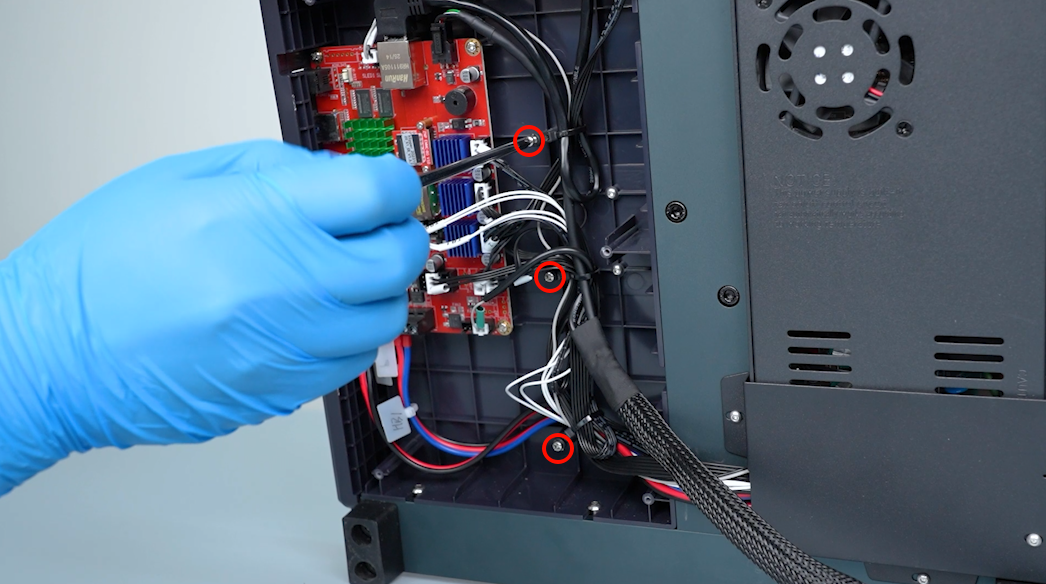

Loosen the screws securing the cable ties with a Phillips screwdriver. Cut off the cable ties with a pair of pliers and remove them.
-

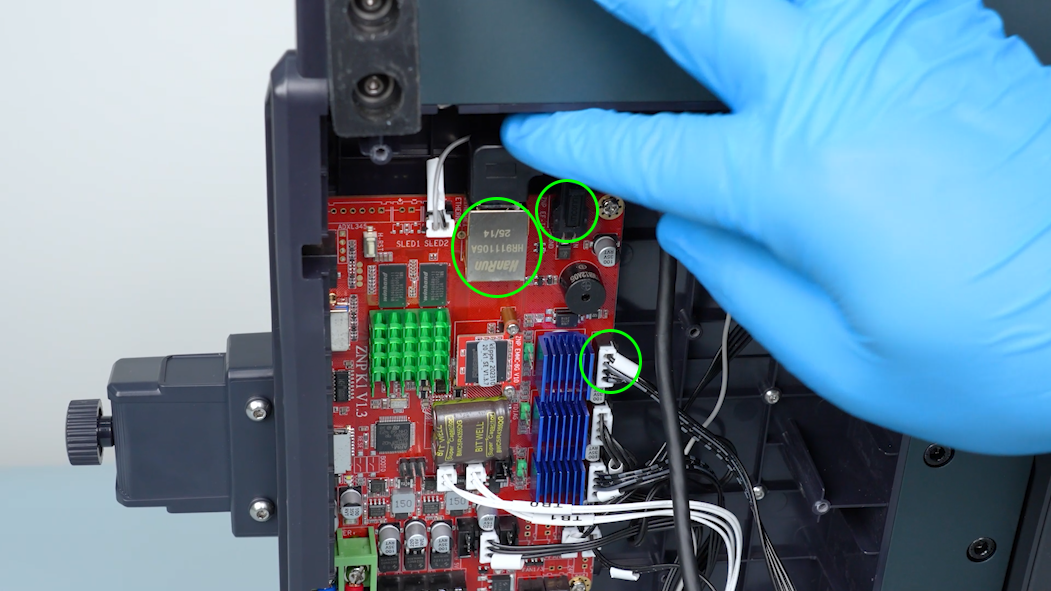

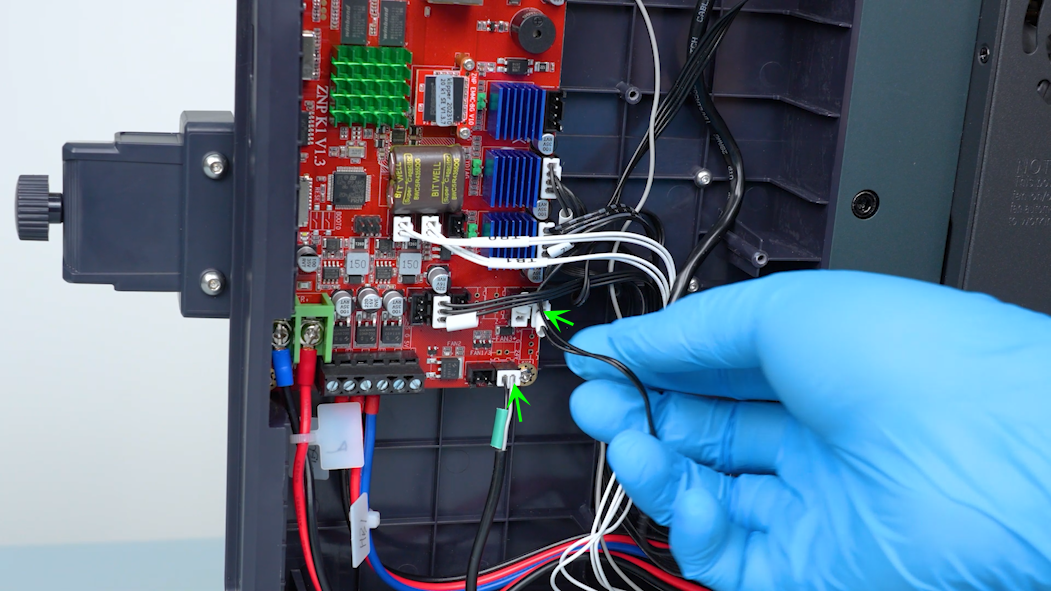

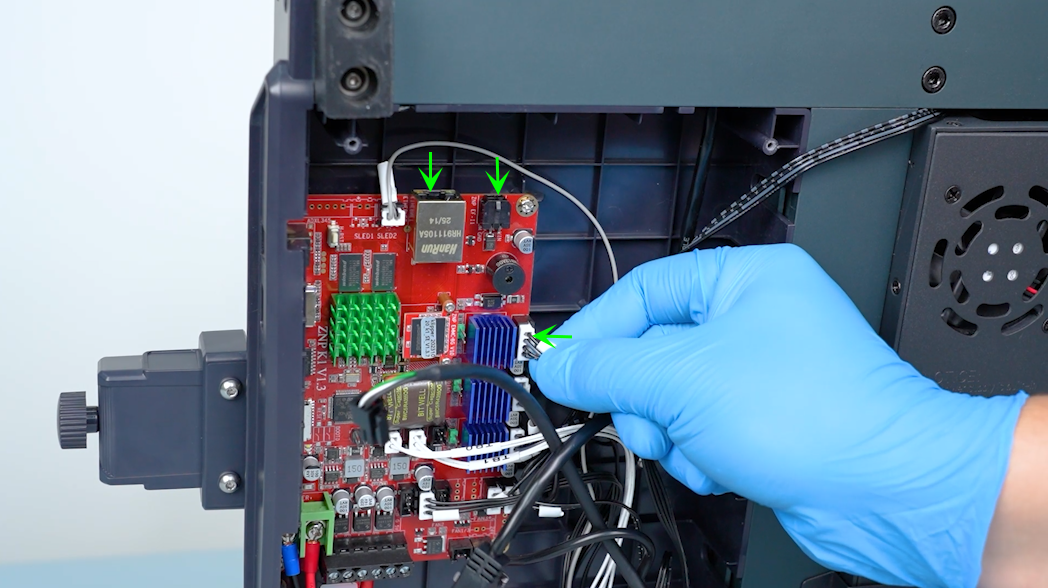

Remove the plugs of the network extension cable and the extruder communication cable.
-

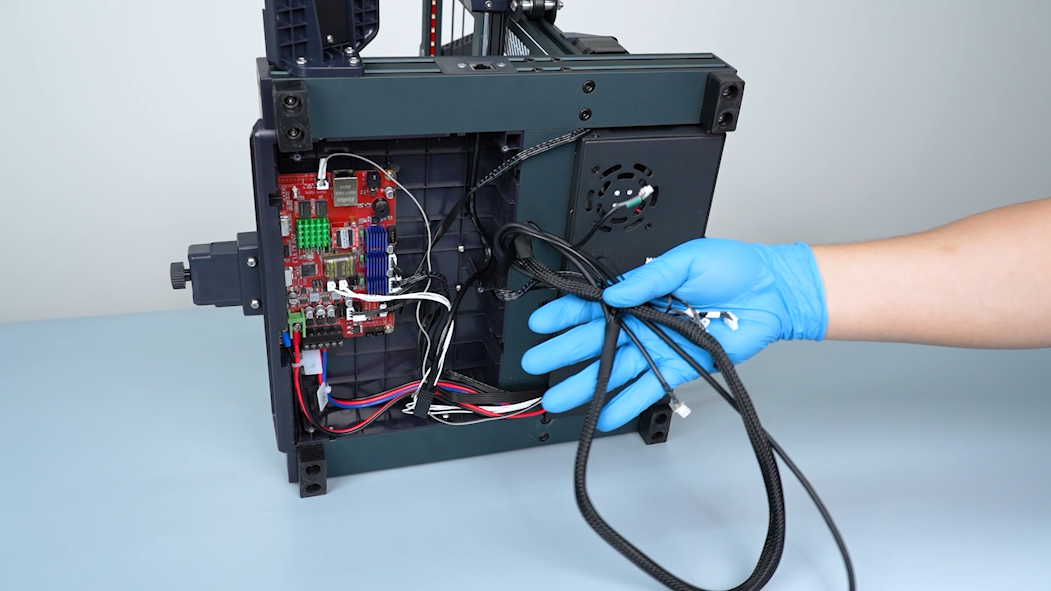

Organize the cables. Remove the old extruder communication cable.
¶ Install the new extruder communication cable
-
Get the new extruder communication cable and insert the plugs.
-

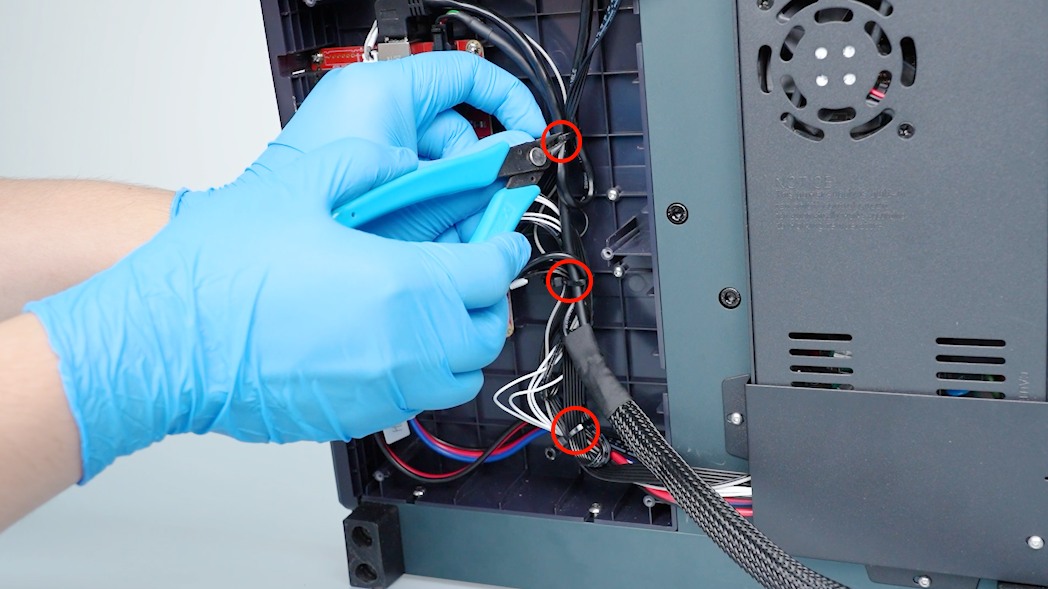

Secure the wires with cable ties. Cut off the ends of the cable ties.
-
Tighten the screws securing the cable ties with a Phillips screwdriver.
-

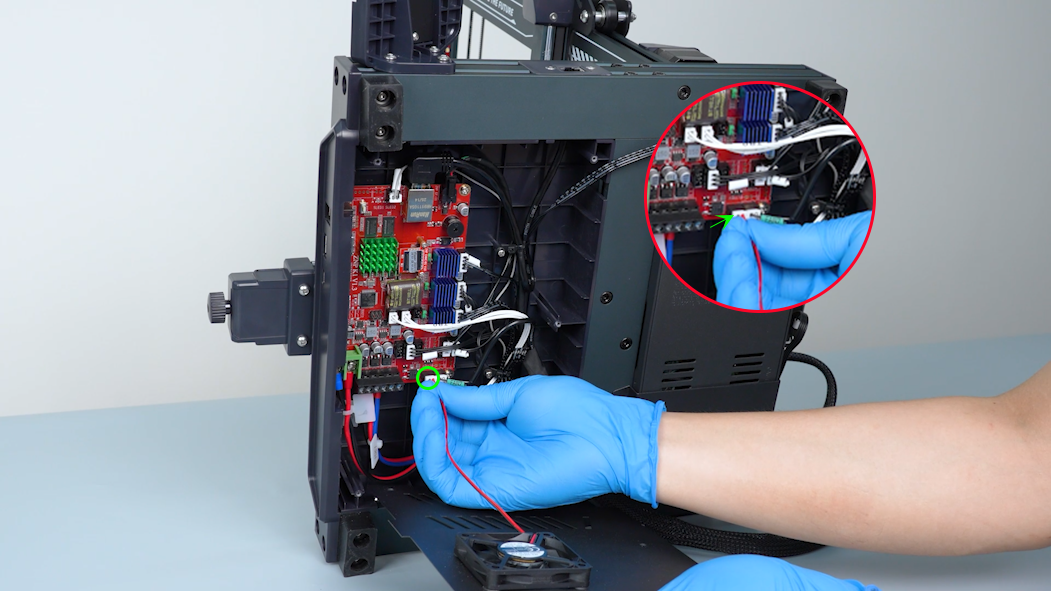

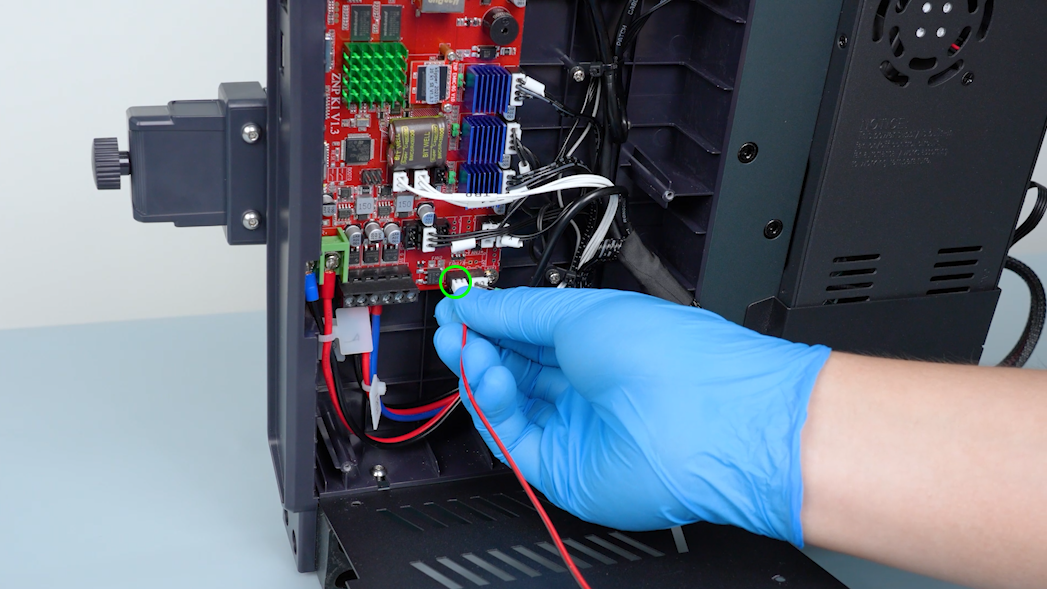

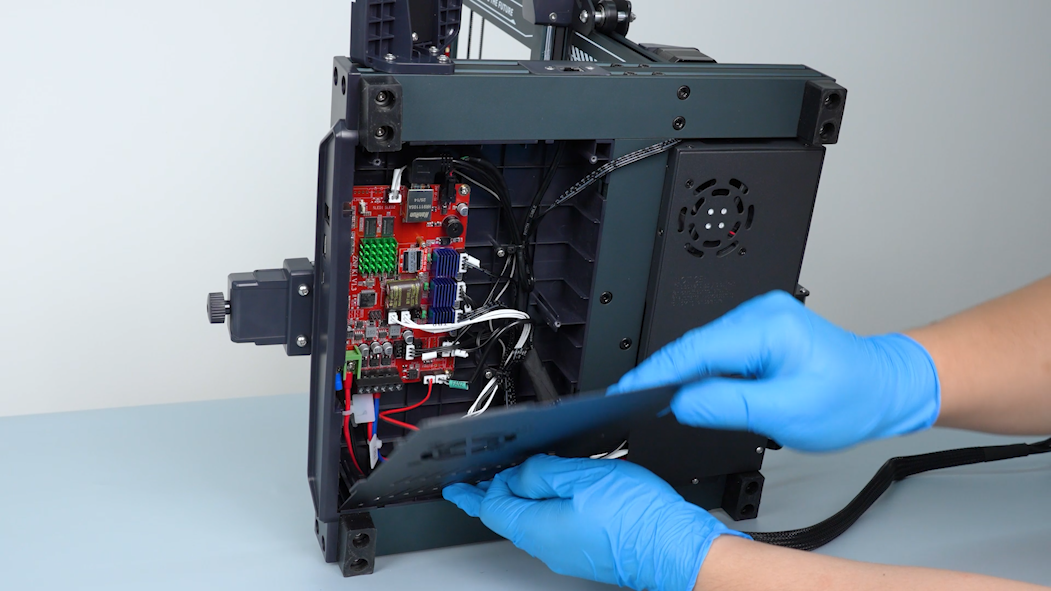

Prepare the bottom cover. Plug in the cable of the motherboard cooling fan.
-
Tighten the screws securing the bottom cover with a Phillips screwdriver．
-

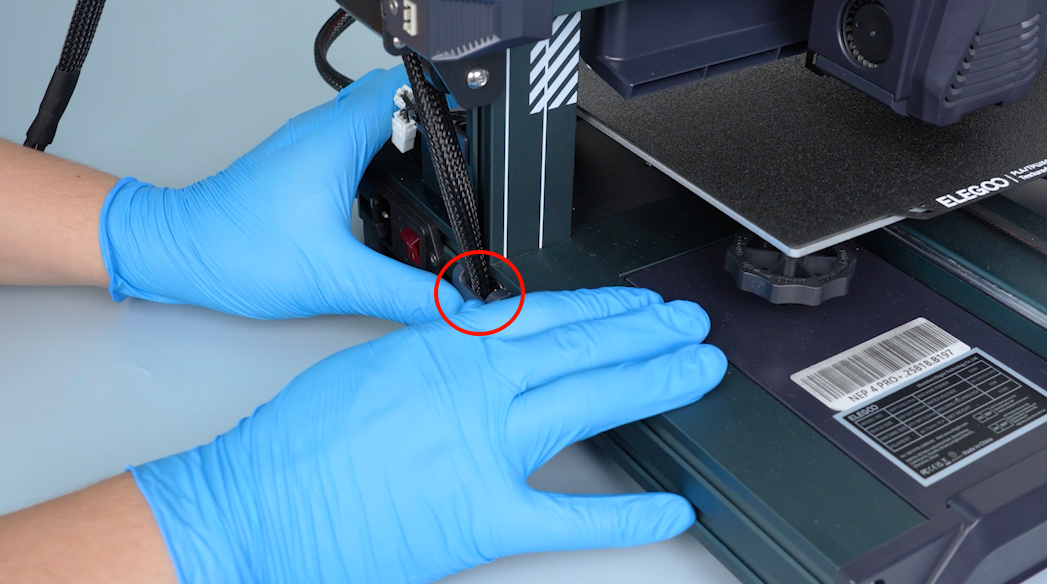

Install the cable snap.
-
Get the cable clip and install it on the extruder communication cable.
-

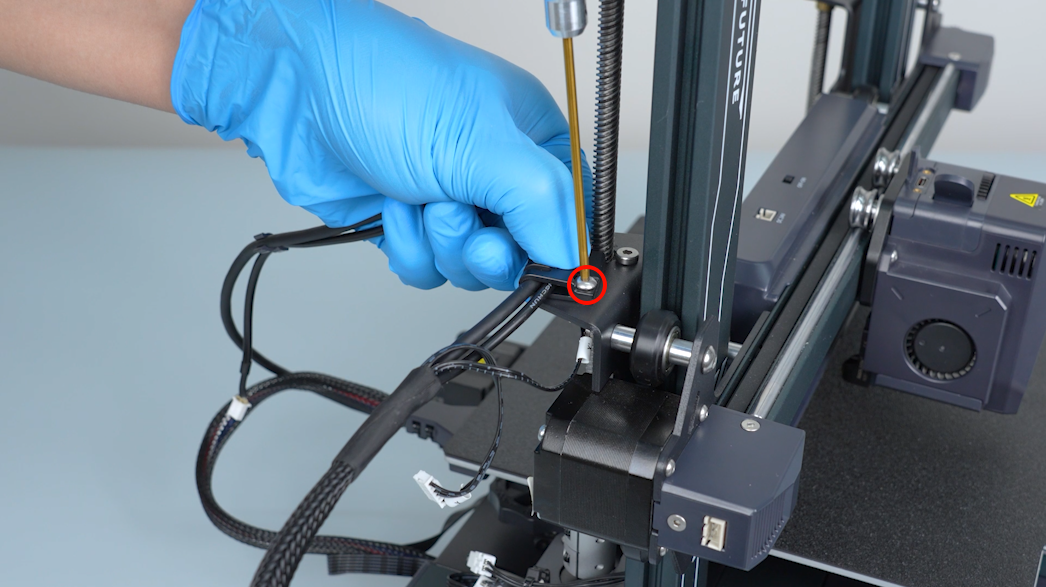

Put the clip in the installation position. Tighten the screw securing the clip.
-

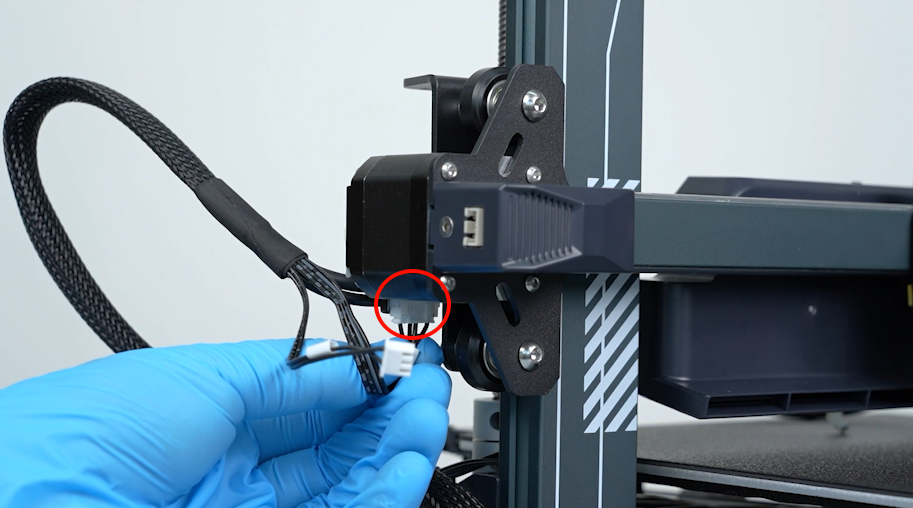

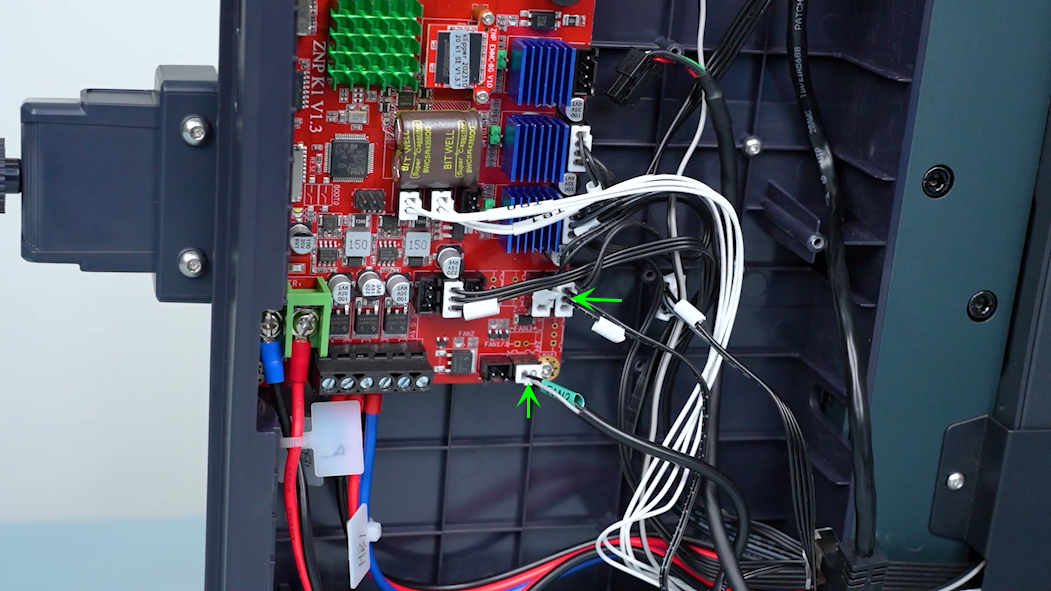

Insert the plugs of the X-axis limit switch and the X-axis motor.
-
Insert the plugs of the extruder communication cable and the auxiliary cooling fan cable.
-
Tighten the two screws securing the extruder communication cable.
-

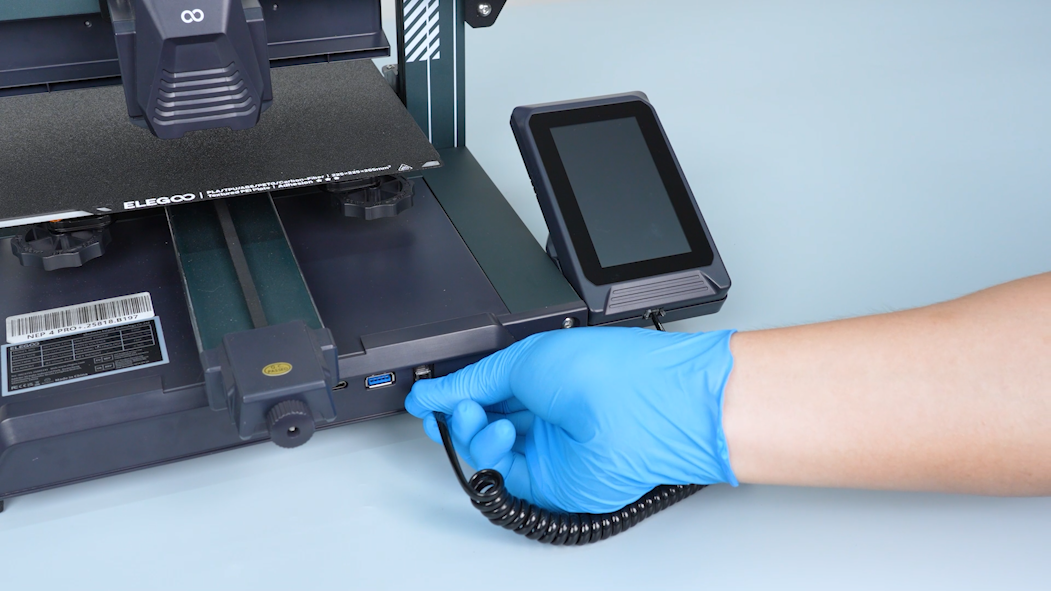

Put the touch screen on the bracket and plug in the connection wire.
¶ Verification
-
Plug in the power supply cable and turn the power switch ON (symbol "|").
-

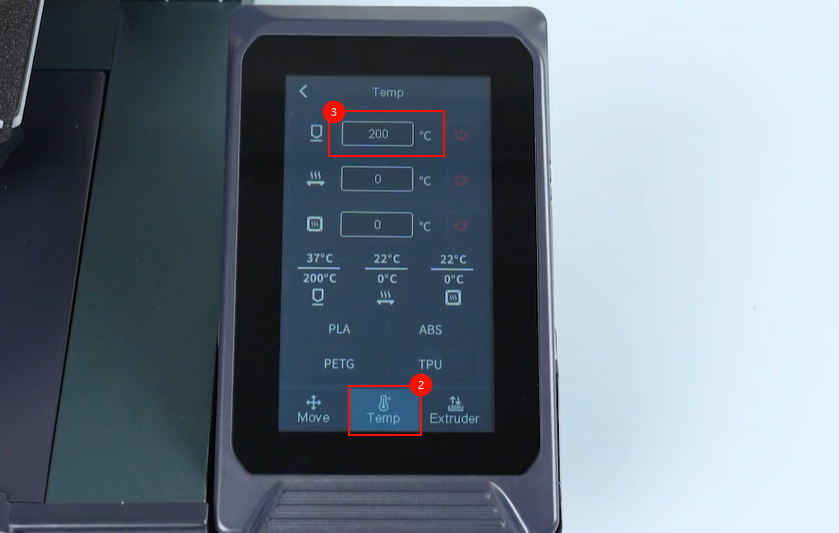

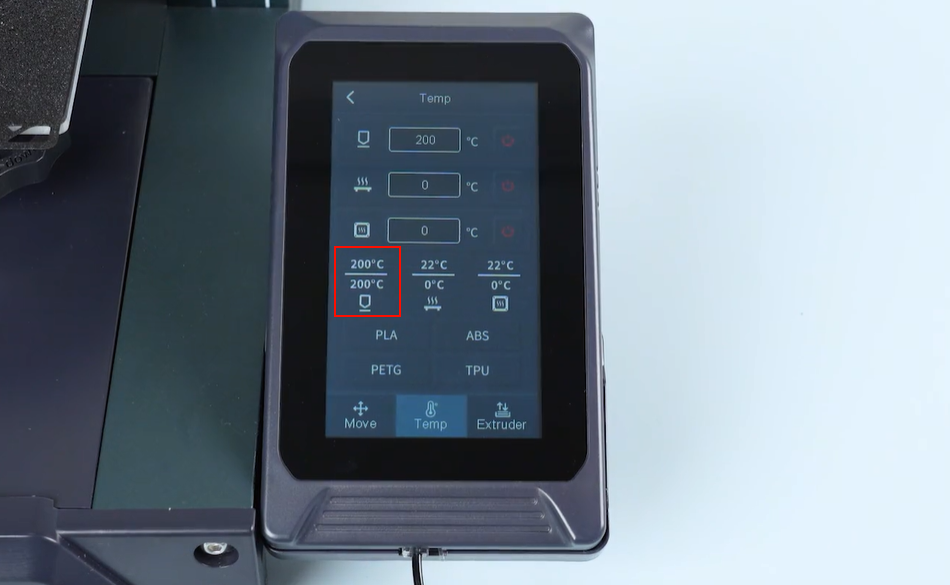

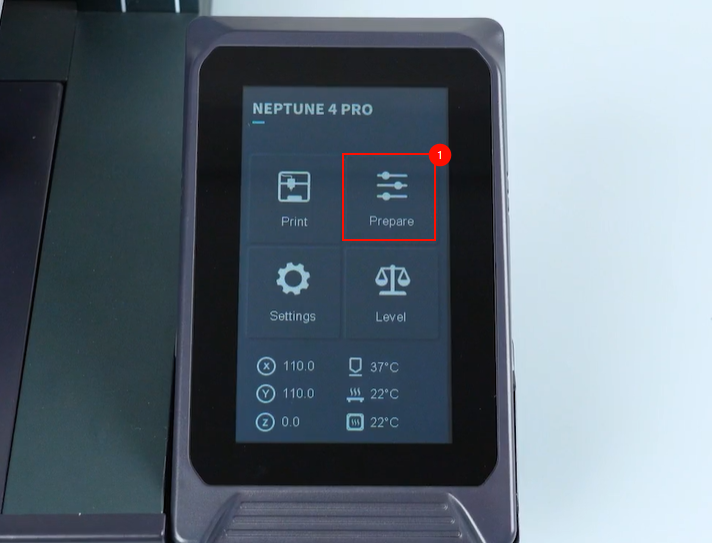

Check that all functions of the extruder communication cable are working properly via the touchscreen. The printer is ready for use.
